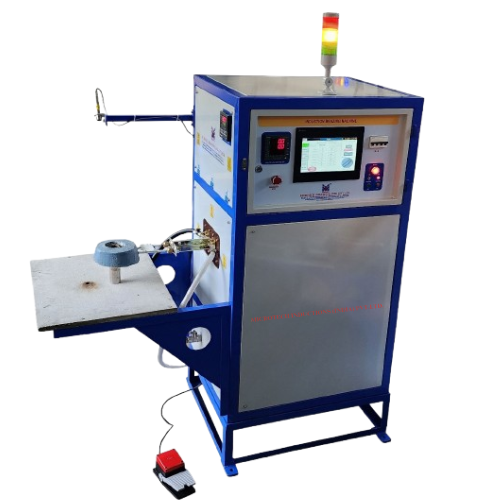

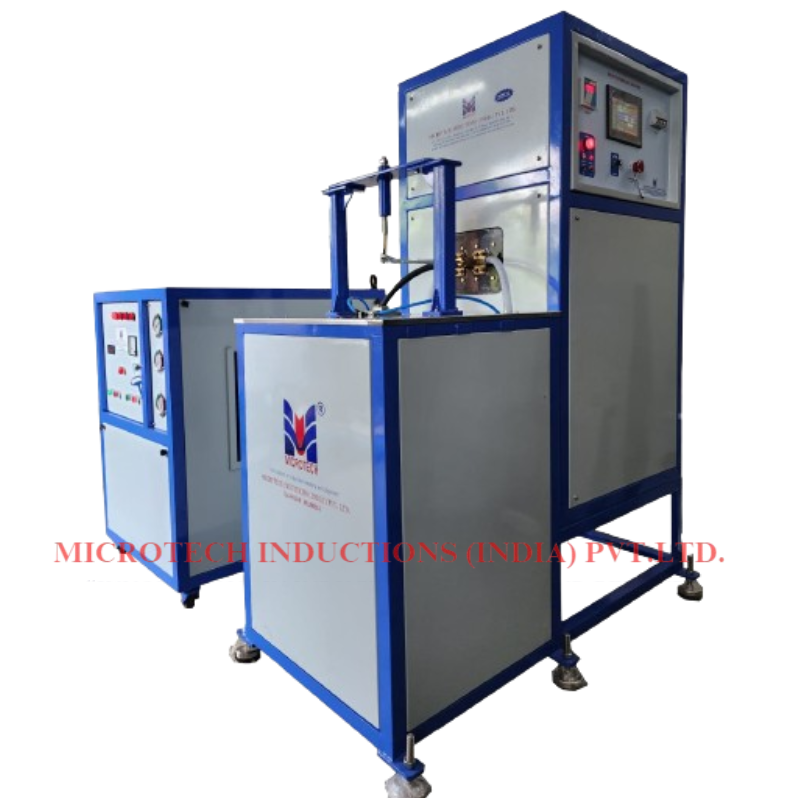

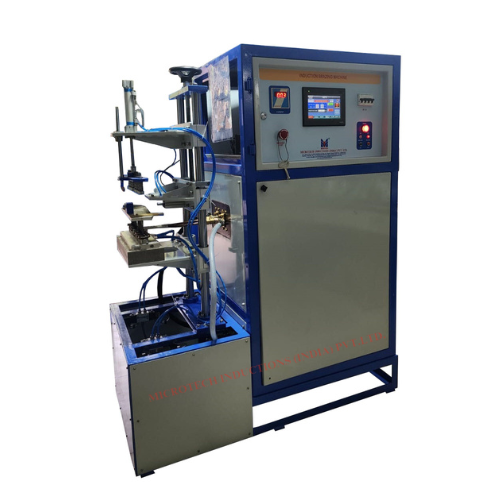

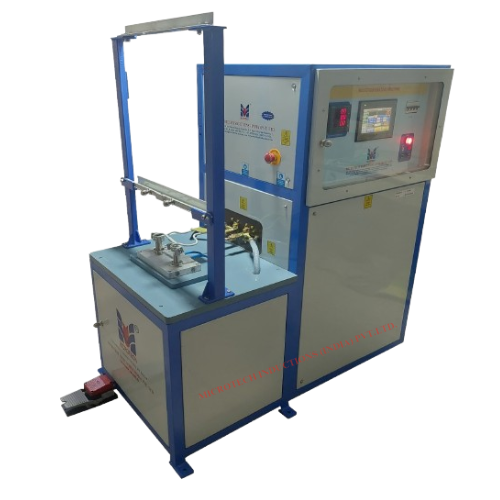

Induction Brazing Machine

Product Description

Microtech induction brazing machines are made to replace conventional brazing methods, with more

reliable / repeatable brazing without flame and smoke.

Brazing temperature can be controlled from 450 C to 1200 C for most of the brazing applications.

Applications

•      Copper parts for compressors.
• Copper components of transformers.
• Brass components.
• Submersible pump rotors.
• Ring cable lugs.
• Aluminium component joints.
• Soldering of brass components.
• Steel components joints.
• Brazing of storage water heater Elements.

• Diamond tipped cutting tools.
• Carbide tipping of cutting tools.
• Optical Frame Brazing.
• Fuel pipe Brazing.
• Vacuum brazing of critical components.
• Brazing stainless steel orthodontic parts.
• Brazing of stainless steel to Brass.
• Rocker Pins.
• Hydraulic Hose.

• Specifications

  In our Endeavour to make better products, Microtech Induction Pvt. Ltd. reserves the right to change any specifications at any moment and without prior notice, to the models (including programming) and their accessories.

  POWER RANGE	1-5KW	5-15KW.	15-50KW	50-200KW
  FREQUENCY RANGE	5-600kHz	01-400kHz	01-30kHz	01-30kHz
  ADAPTATION TO CHANGE LOAD CHARECTERISTICS	YES	YES	YES	YES
  POWER CONTROL	MANUAL	AUTO	AUTO	AUTO
  LOAD SENSED SELF TUNING	YES	YES	YES
  SIZE (mm)	W-225 B-500 H-430	W-530 B-640 H-1110	W-620 B-725 H-1370	W-1000 B-1090 H-1675
  INPUT POWER RANGE	SINGLE PHASE 230V/50Hz.	THREE PHASE 230V/50Hz	THREE PHASE 440V/50Hz	THREE PHASE 440V/50Hz
